Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

1-968704-1 (Tyco / AMP)

Vendor site: TE Conectivity

Black

Pin 1 (Circuit 33BSK)

928999-1 (Tyco / AMP)

(20-24 GA) Female (Tin Brass, Plating=Tin over Copper)


Pin 2 (Circuit 33B5G)

928999-1 (Tyco / AMP)

(20-24 GA) Female (Tin Brass, Plating=Tin over Copper)

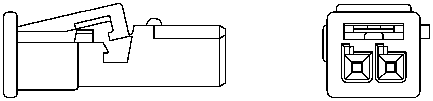

1-968704-1

Connector Cavities


TYP TERM

928999-1 (Tyco / AMP)

928999-1 (Tyco / AMP)
