Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Connector Type

Color

Can Mate To

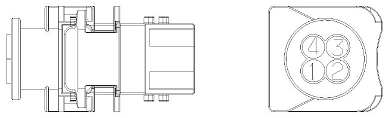

A06-25512-041



Required Assembly Parts:

Cavity Plug (4x):

23-13218-100



Connector (1x):

23-13149-406

Cover / Cap

Green

23-13149-403

A06-25512-041


23-13218-100

(Cavity Seal - Natural)


23-13149-406

Connector Cavities

Male JPTS

12TXL Max



CBL.OD.MM: 1.6-3.3

1, 2, 3, 4


TYP TERM

23-13209-050

23-13209-051

23-13209-052

23-13209-070

23-13209-071

23-13209-072

23-13209-073
