Important Information
When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.
If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.
------ ------ ------ ------ ------ ------
When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...
If available on that site, the part will be shown.
|
Connector Part Number |
Connector Type |
Color |
Can Mate To |
|---|---|---|---|
|
Required Assembly Parts:
Cavity Plug (12x):
Cavity Plug (22x):
Connector (1x):
Terminal Lock (1x): |
Cover / Cap |
White |
23-13153-006 |
|
|
|
(Cavity Seal - Red) |
|
|
|
(Cavity Seal - Natural) |
|
|
|

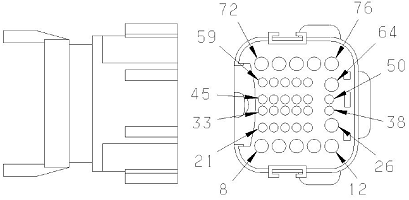

Connector Cavities |
||
|
|
Male M1.6 20G, 20S, 18T, 18G, 18S, 16T, 16G, 16S, 14T, 14G
CBL.OD.MM: 1.7-3.18 21, 22, 23, 24, 25, 33, 34, 35, 36 , 37, 38, 45,46, 47, 48, 49, 50, 59,
60, 61, 62, 63 |
Male M2.8 14G, 14S, 12T, 12G, 12S, 10T, 10G, 8T
CBL.OD.MM: 2.54-4.7 8, 9, 10, 11, 12, 26, 64, 72, 73, 74, 75, 76 |
|
(Terminal Lock) |
|
|
