Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Connector Type

Color

Can Mate To

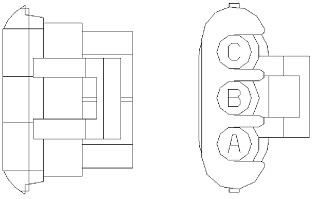

A06-25512-017



Parts Included in Assembly:

Cavity Plug (x3): 23-13218-003

Connector (x1): 23-13142-304

Terminal Lock (x1): 23-13302-010

Cover / Cap

Black

23-13142-305

A06-25512-017


23-13218-003

(Cavity Seal - Light Green)

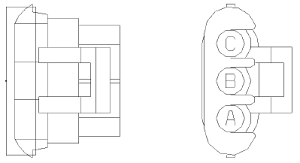

23-13142-304

Connector Cavities

Fem MP630S

A, B, C


23-13213-420

23-13213-421

23-13213-422


23-13302-010

(Terminal Lock)
