Connector Part Number

Connector Type

A06-23560-002

Jumper Assembly, Cluster Switch


A06-23560-002

Kit Contains The Following:

48-25428-181: 0.5' Long (Quantity 1)

23-13142-220: Connector (Quantity 1)
23-13213-130: Male Terminal (Quantity 2)
23-12497-002: Cable seal (Quantity 2)
23-13302-030: Terminal Lock (Quantity 1)

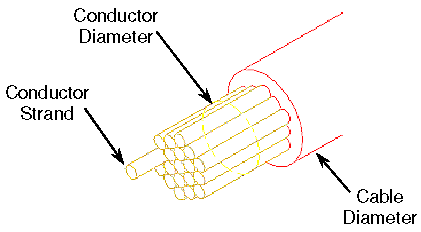

48-25428-181

Wire - General purpose, cross linked polyolefin (GXL)

18 Gauge


Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13141-202

Black

23-13213-110

(16-20 GA) Male (Tin)


23-13213-111

(16 GA) Male (Tin)


23-13213-112

(12-14 GA) Male (Tin)


23-13213-113

(10-12 GA) Male (Tin)

23-13302-071 N/A

23-13141-202

Connector Cavities

Male MP280

CBL.OD.MM:0-3.6

A, B


23-13213-110

23-13213-111

23-13213-112

23-13213-113


23-13213-110


23-13213-111


23-13213-112


23-13213-113


23-13302-071

(Terminal Lock)
