Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13662-805

Natural

23-13211-480

(18-20 GA) Female (Tin)


23-13211-481

(16 GA) Female (Tin)


23-13211-483

(14-22 GA) Female (Tin)


23-13211-484

(14-22 GA) Female (Tin/Nickel)


23-13211-485

(18-22 GA) Female (Gold)

N/A


23-13662-805

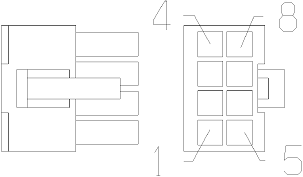

Connector Cavities

Fem MF

22T, 20T, 20G, 20S,

18T, 18G, 18S, 16T,

16G, 16S, 14T, 14G

1, 2, 3, 4, 5, 6, 7, 8


TYP TERM

23-13211-480

23-13211-481

23-13211-483

23-13211-484

23-13211-485


23-13211-480


23-13211-481


23-13211-483


23-13211-484


23-13211-485
