Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13662-329



Terminal Lock:

23-13154-140

Gray

23-14500-000

(16-20 GA) Male (Tin)


23-14500-001

(14-18 GA) Female (Nickel)


23-14500-002

(14-18 GA) Female (Nickel)


23-14500-005

(14-18 GA) Female (Gold)


23-14500-006

(14-18 GA) Female (Gold)


23-14500-007

(14-18 GA) Female (Gold)

23-13218-630

23-13148-300



or



23-13148-308



or



23-13148-311

or



23-13148-312



or



Battery Cut-Off Switch

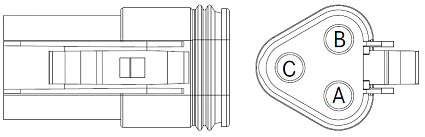

23-13662-329

Connector Cavities

Fem MXLT S16



CBL.OD.MM: 2.23-3.68

A, B, C


TYP TERM

23-14500-000

23-14500-001

23-14500-002

23-14500-005

23-14500-006

23-14500-007


23-14500-000

(14-18 GA) Female (Nickel)


23-14500-001

(14-18 GA) Female (Nickel)

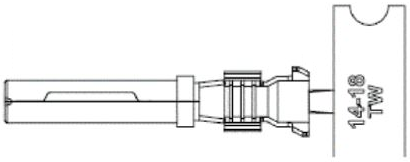

23-14500-002

(14-18 GA) Female (Nickel)


23-14500-005

(14-18 GA) Female (Gold)


23-14500-006

(14-18 GA) Female (Gold)


23-14500-007

(14-18 GA) Female (Gold)


23-13154-140

(Terminal Lock)


23-13218-630

(Cavity Plug)
