Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13153-604

Black

23-13211-210

(20 GA) Female (Tin)


23-13211-211

(16 GA) Female (Tin)


23-13211-212

(16 GA) Female (Tin)


23-13211-213

(16 GA) Female (Tin)

23-13218-400


23-13153-604

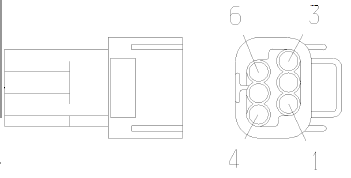

Connector Cavities

Male Y1.5S
CBL.OD.MM:1.19-2.5

1, 2, 3, 4, 5, 6


TYP TERM

23-13211-210

23-13211-211

23-13211-212

23-13211-213






23-13218-400

(Cavity Seal - Green)
