Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13153-306

Black

23-13211-470

(16-20 GA) Male (Gold)


23-13211-471

(22 GA) Male (Tin)


23-13211-472

(16-20 GA) Male (Tin)


23-13211-473

(14 GA) Male (Tin)

23-13218-601



23-13218-610

23-13153-307

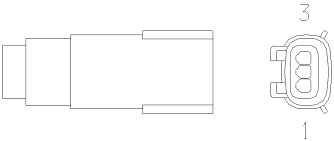

23-13153-306 Connector Cavities

Male MX150



CBL.OD.MM: 1.2-2.4

1, 2, 3


23-13211-470

23-13211-471

23-13211-472

23-13211-473


23-13211-470

(16-20 GA) Male (Gold)


23-13211-471

(22 GA) Male (Tin)


23-13211-472

(16-20 GA) Male (Tin)


23-13211-473

(14 GA) Male (Tin)
