Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

23-13153-073

Black

23-13208-380

(18-20 GA) Female (Gold)


23-13208-385

(18-20 GA) Female (Tin)




23-13211-300

(16-20 GA) Female (Tin)






23-13211-301

(14 GA) Female (Tin)




23-13211-302

(12 GA) Female (Tin)


23-13211-303

(10 GA) Female (Tin)



N/A




N/A


23-13217-150

(White)

23-13217-151

(White)


23-13217-151

(White)

23-13217-152

(White)


23-13217-152

(White)


23-13217-153

(White)

23-13218-101




















23-13218-402












23-13153-073

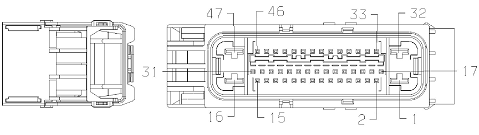

Connector Cavities

Fem 0.64 20T,18T
CBL.OD.MM:1.64-2.2

2, 3, 4, 5, 6, 7, 8, 9, 10,

11, 12, 13, 14, 15, 17,

18, 19, 20, 21, 22, 23,

24, 25, 26, 27, 28, 29,

30, 31, 33, 34, 35, 36,

37, 38, 39, 40, 41, 42,

43, 44, 45, 46


23-13208-380

23-13208-385

Fem Y6.3S
20T,18T,16T,14T,12T
CBL.OD.MM:1.4-3.8

1, 16, 32, 47


23-13211-300

23-13211-301

23-13211-302

23-13211-303








23-13217-150

(Terminal Seal - Red)


23-13217-151

(Terminal Seal - Blue)


23-13217-152

(Terminal Seal - Black)


23-13217-153

(Terminal Seal - Light Gray)


23-13218-402

(Cavity Seal - Green)


23-13218-402

(Cavity Seal - Green)
