Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13153-045



Terminal Lock:

23-13154-005

Gray

23-13211-400

(18-20 GA) Female (Tin)


23-13211-401

(14-16 GA) Female (Tin)


23-13211-520

(18-20 GA) Female (Gold)


23-13211-420

(18-20 GA) Female (Tin)


23-13211-421

(14-16 GA) Female (Tin)


23-13211-422

(10-12 GA) Female (Tin)

23-13218-900

(Small Cavity

M1.6)

(Color: Natural)


23-13218-901

(Large Cavity

M2.8)

(Color: Red)

23-13153-044

23-13153-045

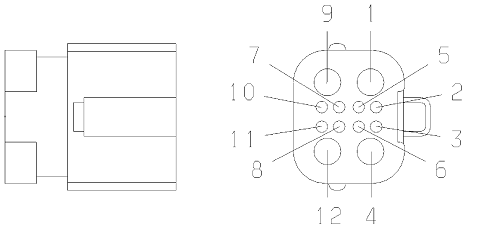

Connector Cavities

Fem M1.6



CBL.OD.MM: 1.7-2.7

2, 3, 5, 6, 7, 8, 10, 11


23-13211-400

23-13211-401

23-13211-520

Fem M2.8



CBL.OD.MM: 1.88-4.05

1, 4, 9, 12


23-13211-420

23-13211-421

23-13211-422


23-13211-400

(18-20 GA) Female (Tin)


23-13211-401

(14-16 GA) Female (Tin)


23-13211-520

(18-20 GA) Female (Gold)


23-13211-420

(18-20 GA) Female (Tin)


23-13211-421

(14-16 GA) Female (Tin)


23-13211-422

(10-12 GA) Female (Tin)


23-13218-900

(Cavity Seal - Natural)


23-13218-901

(Cavity Seal - Red)


23-13154-005

(Terminal Lock)
