Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

Can Mate To

23-13151-415



* Fastener:

 23-13304-502



*= Optional

Black

23-13208-170

(22 GA) Male (Tin)




23-13208-171

(18-20 GA) Male (Tin)


23-13208-172

(14-16 GA) Male (Tin)

23-13216-031

(Dark Blue)


23-13216-030

(Yellow)

23-13216-031

(Dark Blue)


23-13216-030

(Yellow)

23-13218-100

23-13151-400



or



23-13151-408



or



23-13151-416



or



23-13151-419


23-13151-415

Connector Cavities

Male 2.5S

22T, 20T,

18T, 16T,

16G, 14T



1, 2, 3, 4


TYP TERM

23-13208-170

23-13208-171

23-13208-172


23-13208-170

(22 GA) Male (Tin)


23-13208-171

(18-20 GA) Male (Tin)

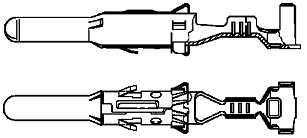

23-13208-172

(14-16 GA) Male (Tin)


23-13216-030

(Terminal Seal, Yellow)


23-13216-031

(Terminal Seal, Dark Blue)


23-13304-502

(Fastener)


23-13218-100

(Cavity Seal - Natural)
