| 23-13149-202 |

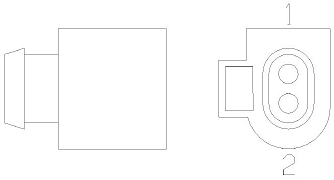

Connector Cavities |
|
|
FEM MCP2.8S 20TXL, 18TXL, 18GXL, 16TXL, 16GXL, 14TXL, 14GXL, 12TXL
CBL.OD.MM: 1.6-3.4 1, 2 |
Important Information
When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.
If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.
------ ------ ------ ------ ------ ------
When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...
If available on that site, the part will be shown.
|
Connector Part Number |
Color |
Terminal Part Numbers |
Terminal Seal |
Plug Part Number |
Can Mate To |
|---|---|---|---|---|---|
|
Black |
(14-16 GA) Female (Tin)
(12 GA) Female (Tin)
(18-20 GA) Female (Tin)
(18-20 GA) Female (Silver) (14-16 GA) Female (Silver) (12 GA) Female (Silver) (18-20 GA) Female (Gold) (22 GA) Female (Gold) |
(White) (Gray) (Gray) (Light Blue) (White) (Light Blue) (White) (Brown) (Light Blue) (Light Blue) |
or
Tail Light |
| 23-13149-202 |
Connector Cavities |
|
|
FEM MCP2.8S 20TXL, 18TXL, 18GXL, 16TXL, 16GXL, 14TXL, 14GXL, 12TXL
CBL.OD.MM: 1.6-3.4 1, 2 |
|
(14-16 GA) Female (Tin) |
|
|
|
(12 GA) Female (Tin) |
|
|
|
(18-20 GA) Female (Tin) |
|
|
|
(18-20 GA) Female (Silver) |
|
|
|
(14-16 GA) Female (Silver) |
|
|
|
(12 GA) Female (Silver) |
|
|
|
(18-20 GA) Female (Gold) |
|
|
|
(22 GA) Female (Gold) |
|
|
|
(Terminal Seal, Light Blue) |
|
|
|
(Terminal Seal, White) |
|
|
|
(Terminal Seal, Brown) |
|
|
|
(Terminal Seal, Gray) |
|
|
|
(Cavity Seal - Natural) |
|
|
