Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13149-025



Terminal Lock:

23-13304-005

Purple

23-13209-010

(20 GA) Male (Gold)


23-13209-030

(20 GA) Male (Gold)


23-13209-031

(20 GA) Male (Tin)

N/A

23-13149-003



or



23-13149-004



or



23-13149-018



or



23-13149-019


23-13149-025

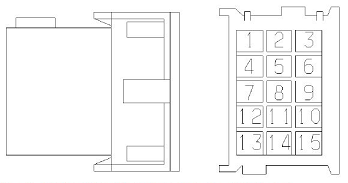

Connector Cavities

Male JPT

1, 2, 3, 4, 5, 6, 7,

8, 9, 10, 11, 12,

13, 14, 15


TYP TERM

23-13209-010

23-13209-030

23-13209-031


23-13209-010

(20 GA) Male (Gold)


23-13209-030

(20 GA) Male (Gold)


23-13209-031

(20 GA) Male (Tin)


23-13304-005

(Terminal Lock)
