Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-609



Terminal Lock:

23-13303-041

Gray

23-13210-010

(16-20 GA) Male (Nickel)


23-13210-014

(18-22 GA) Male (Nickel)


23-13210-030

(16-20 GA) Male (Gold)


23-13210-034

(18-22 GA) Male (Gold)

23-13218-200

23-13148-608


23-13148-609

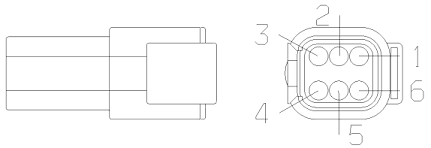

Connector Cavities

Male S20

20TXL, 20GXL,

20SXL, 18TXL,

18GXL, 18SXL,

16TXL, 16GXL



CBL.OD.MM: 1.35-3.05

1, 2, 3, 4, 5, 6


TYP TERM

23-13210-010

23-13210-014

23-13210-030

23-13210-034


23-13210-010

(16-20 GA) Male (Nickel)


23-13210-014

(18-22 GA) Male (Nickel)


23-13210-030

(16-20 GA) Male (Gold)


23-13210-034

(18-22 GA) Male (Gold)


23-13303-041

(Terminal Lock)


23-13218-200

(Cavity Seal - Red)
