Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-308



Terminal Lock:

23-13303-004



* Terminal Lock:

23-13303-020



* = Optional

Gray

23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-118

(16-20 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)


23-13210-133

(16-20 GA) Male (Gold)


23-13210-140

(12-16 GA) Male (Tin)

23-13218-204

23-13148-301



or



23-13148-306



or

23-13148-307



or



23-13148-313

or



23-13662-329


23-13148-308

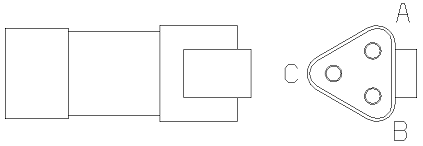

Connector Cavities

Male S16



18GXL, 18SXL, 16GXL, 16SXL,

14TXL, 14GXL, 14SXL



CBL.OD.MM:2.23-3.68

A, B, C


TYP TERM

23-13210-110

23-13210-111

23-13210-118

23-13210-130

23-13210-131

23-13210-132

23-13210-133

23-13210-140


23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-118

(16-20 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)


23-13210-133

(16-20 GA) Male (Gold)


23-13210-140

(12-16 GA) Male (Tin)


23-13303-004

(Terminal Lock)


23-13303-020

(Terminal Lock)


23-13218-204

(Cavity Seal - White)
