Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-207



Terminal Lock:

23-13303-016

Gray

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13210-129

(16-20 GA) Female (Gold)


23-13210-139

(14-16 GA) Female (Nickel)

23-13218-204

23-13148-201



or



23-13148-208



or



23-13148-905


23-13148-207

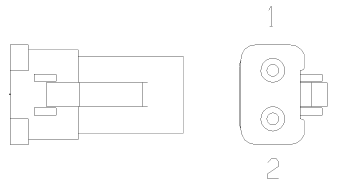

Connector Cavities

Fem S16 18GXL,
18SXL, 16GXL, 16SXL
14TXL, 14GXL, 14SXL
CBL.OD.MM:2.24-3.68

1, 2


TYP TERM

23-13210-100

23-13210-101

23-13210-108

23-13210-120

23-13210-121

23-13210-122

23-13210-129

23-13210-139


23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13210-129

(16-20 GA) Female (Gold)


23-13210-139

(14-16 GA) Female (Nickel)


23-13303-016

(Terminal Lock)


23-13218-204

(Cavity Seal - White)
