Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-080

Black

23-13210-640

(12-14 GA) Male (Nickel)


23-13210-641

(12-14 GA) Male (Nickel)


23-13210-642

(16 GA) Male (Nickel)


23-13210-643

(16 GA) Male (Nickel)


23-13210-644

(12-14 GA) Male (Nickel)


23-13210-645

(12-14 GA) Male (Nickel)


23-13210-660

(18-20 GA) Male (Gold)


23-13210-661

(18-20 GA) Male (Gold)


23-13210-662

(16 GA) Male (Gold)


23-13210-663

(16 GA) Male (Gold)


23-13210-664

(12-14 GA) Male (Gold)


23-13210-665

(12-14 GA) Male (Gold)


23-13210-600

(20-22 GA) Male (Nickel)


23-13210-601

(20 GA) Male (Nickel)


23-13210-602

(16-18 GA) Male (Nickel)


23-13210-603

(16-18 GA) Male (Nickel)


23-13210-620

(20-22 GA) Male (Gold)


23-13210-621

(20 GA) Male (Gold)


23-13210-622

(16-18 GA) Male (Gold)


23-13210-623

(16-18 GA) Male (Gold)


23-13210-680

(16-18 GA) Male (Nickel)


23-13210-681

(16-18 GA) Male (Nickel)


23-13210-682

(14 GA) Male (Nickel)


23-13210-683

(14 GA) Male (Nickel)


23-13210-684

(12-14 GA) Male (Nickel)


23-13210-685

(12-14 GA) Male (Nickel)


23-13210-686

(10 GA) Male (Nickel)


23-13210-700

(16-18 GA) Male (Gold)


23-13210-701

(16-18 GA) Male (Gold)


23-13210-702

(14 GA) Male (Gold)


23-13210-703

(14 GA) Male (Gold)


23-13210-704

(12-14 GA) Male (Gold)


23-13210-705

(12-14 GA) Male (Gold)


23-13210-706

(10 GA) Male (Gold)













23-13218-060




























































































23-13218-061

23-13148-079



or



23-13148-082


23-13148-080

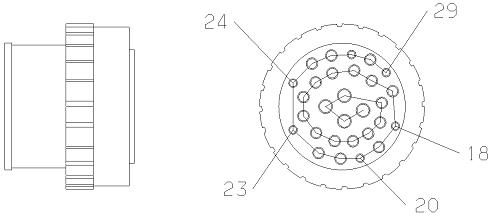

Connector Cavities

Male HES1.6



18GXL, 18SXL, 16GXL,

16SXL, 14TXL, 14GXL,

14SXL



CBL.OD.MM: 2.25.-3.7

5, 6, 7, 8, 9, 10, 11, 12,

13, 14, 15, 16, 17, 19

21, 22, 25, 26, 28


TYP TERM

23-13210-640

23-13210-641

23-13210-642

23-13210-643

23-13210-644

23-13210-645

23-13210-660

23-13210-661

23-13210-662

23-13210-663

23-13210-664

23-13210-665

Male HES1.0



20GXL, 20SXL, 18TXL,

18GXL, 16TXL, 16GXL



CBL.OD.MM: 1.8.-3.05

18, 20, 23, 24, 27, 29


TYP TERM

23-13210-600

23-13210-601

23-13210-602

23-13210-603

23-13210-620

23-13210-621

23-13210-622

23-13210-623

Male HES2.4



14GXL, 14SXL, 12GXL,

12SXL, 10TXL



CBL.OD.MM:2.9-4.3

1, 2, 3, 4


TYP TERM

23-13210-680

23-13210-681

23-13210-682

23-13210-683

23-13210-684

23-13210-685

23-13210-686

23-13210-700

23-13210-701

23-13210-702

23-13210-703

23-13210-704

23-13210-705

23-13210-706


23-13210-640

(12-14 GA) Male (Nickel)


23-13210-641

(12-14 GA) Male (Nickel)


23-13210-642

(16 GA) Male (Nickel)


23-13210-643

(16 GA) Male (Nickel)


23-13210-644

(12-14 GA) Male (Nickel)


23-13210-645

(12-14 GA) Male (Nickel)


23-13210-660

(18-20 GA) Male (Gold)


23-13210-661

(18-20 GA) Male (Gold)


23-13210-662

(16 GA) Male (Gold)


23-13210-663

(16 GA) Male (Gold)


23-13210-664

(12-14 GA) Male (Gold)


23-13210-665

(12-14 GA) Male (Gold)


23-13210-600

(20-22 GA) Male (Nickel)


23-13210-601

(20 GA) Male (Nickel)


23-13210-602

(16-18 GA) Male (Nickel)


23-13210-603

(16-18 GA) Male (Nickel)


23-13210-620

(20-22 GA) Male (Gold)


23-13210-621

(20 GA) Male (Gold)


23-13210-622

(16-18 GA) Male (Gold)


23-13210-623

(16-18 GA) Male (Gold)


23-13210-680

(16-18 GA) Male (Nickel)


23-13210-681

(16-18 GA) Male (Nickel)


23-13210-682

(14 GA) Male (Nickel)


23-13210-683

(14 GA) Male (Nickel)


23-13210-684

(12-14 GA) Male (Nickel)


23-13210-685

(12-14 GA) Male (Nickel)


23-13210-686

(10 GA) Male (Nickel)


23-13210-700

(16-18 GA) Male (Gold)


23-13210-701

(16-18 GA) Male (Gold)


23-13210-702

(14 GA) Male (Gold)


23-13210-703

(14 GA) Male (Gold)


23-13210-704

(12-14 GA) Male (Gold)


23-13210-705

(12-14 GA) Male (Gold)


23-13210-706

(10 GA) Male (Gold)


 23-13218-060

(Cavity Plug - Black)


 23-13218-061

(Cavity Plug - Light Gray)
