Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-059



* Back Shell (90 Degree):

23-13303-608



Back Shell (Straight):

23-13303-613



* = Optional



Black

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13210-129

(16-20 GA) Female (Gold)


23-13210-139

(14-16 GA) Female (Nickel)


23-13210-200

(12-14 GA) Female (Nickel)


23-13210-201

(10 GA) Female (Nickel)


23-13210-220

(12-14 GA) Female (Gold)


23-13210-221

(10 GA) Female (Gold)













23-13218-204
































23-13218-201

23-13148-044



or



A06-25512-033

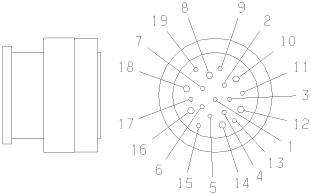

23-13148-059 Connector Cavities

Fem S16

18SXL, 16SXL,

14TXL, 14GXL



CBL.OD.MM: 2.54-3.4

1, 2, 3, 4, 5, 6, 7, 9, 11,

13, 15, 17, 19


TYP TERM

23-13210-100

23-13210-101

23-13210-108

23-13210-120

23-13210-121

23-13210-122

23-13210-129

23-13210-139

Fem S12

14SXL, 12GXL,

12SXL, 10TXL



CBL.OD.MM: 3.4-4.3

8, 10, 12, 14, 16, 18


TYP TERM

23-13210-200

23-13210-201

23-13210-220

23-13210-221


23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13210-129

(16-20 GA) Female (Gold)


23-13210-139

(14-16 GA) Female (Nickel)


23-13210-200

(12-14 GA) Female (Nickel)


23-13210-201

(10 GA) Female (Nickel)


23-13210-220

(12-14 GA) Female (Gold)


23-13210-221

(10 GA) Female (Gold)


23-13303-608

(Back Shell)


23-13303-613

(Back Shell)


23-13218-201

(Cavity Seal - White)


23-13218-204

(Cavity Seal - White)
