Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-047



Terminal Lock:

23-13303-001

Gray

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)

23-13218-204

23-13148-000



or



23-13148-001



or



23-13148-038



or



23-13148-048

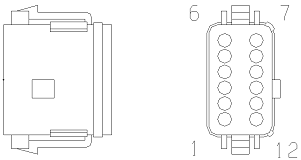

23-13148-047 Connector Cavities

Fem S16

18TXL, 18GXL, 18SXL,

16TCL, 16GXL, 16SXL,

14TXL, 14GXL


CBL.OD.MM: 1.34-3.04

1, 2, 3, 4, 5, 6,

7, 8, 9, 10, 11, 12


TYP TERM

23-13210-100

23-13210-101

23-13210-120

23-13210-121

23-13210-122


23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13303-001

(Terminal Lock)


23-13218-204

(Cavity Seal - White)
