Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13148-016



* Connector Cover:

23-13303-803



* Connector Cover:

23-13303-814



Seal:

23-13303-702



Nut:

23-13303-502



Washer:

23-13303-501



* = Optional

Silver / Chrome

23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-118

(16-20 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)


23-13210-140

(12-16 GA) Male (Tin)

23-13218-204

23-13148-017



or



23-13148-018



or



23-13148-020


23-13148-016

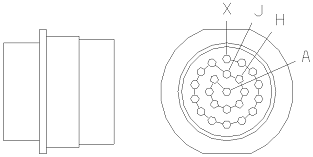

Connector Cavities

Male S16

18GXL, 18SXL,

16GXL, 16SXL,

14TXL, 14GXL



CBL.OD.MM: 2.23-3.4

A, B, C, D, E, F, G, H, J,

K, L, M, N, O, P, Q, R, S,

T, U, V, W, X


TYP TERM

23-13210-110

23-13210-111

23-13210-118

23-13210-130

23-13210-131

23-13210-132

23-13210-140


23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-118

(16-20 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)


23-13210-140

(12-16 GA) Male (Tin)


23-13303-803

(Connector Cover)


23-13303-814

(Connector Cover, Use w/HDP Receptacle Shell Size 24)


23-13303-702

(Connector Seal)


23-13303-502

(Panel Nut)


23-13303-501

(Washer)


23-13218-204

(Cavity Seal - White)
