Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

23-13147-108

Black

23-13214-400

(16-18 GA) Female (Tin)


23-13214-401

(16 GA) Female (Tin)

N/A N/A

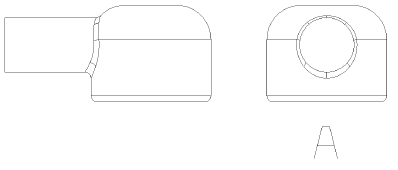

23-13147-108

Connector Cavities

Female PINGRIP

Terminals Molded To Connector

CBL.OD.MM:2.26-3.56

A


TYP TERM

23-13214-400

23-13214-401


23-13214-400

(18-20 GA) (Tin)


23-13214-401

(16 GA) (Tin)
