Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

Can Mate To

23-13144-403



Terminal Lock:

23-13302-117

Black



23-13212-030

(16-18 GA) Female (Tin)


23-13212-031

(16-18 GA) Female (Gold)




23-13212-032

(20-22 GA) Female (Tin)





23-12497-151

(Blue)


23-12497-151

(Blue)


23-12497-150

(Blue)

23-12497-151

(White)

23-13218-010

23-13144-402

23-13144-403

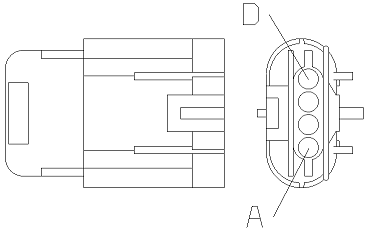

Connector Cavities

Fem GT150S



CBL.OD.MM:1.4-2.64

A, B, C, D


23-13212-030

23-13212-031

23-13212-032


23-13212-030

(16-18 GA) Male (Tin)


23-13212-031

(16-18 GA) Male (Gold)


23-13212-032

(20-22 GA) Male (Gold)


23-12497-150

(Terminal Seal)

(White)


23-12497-151

(Terminal Seal)

(Blue)


23-13302-117

(Terminal Lock)


 23-13218-010

(Cavity Seal - Green)
