Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

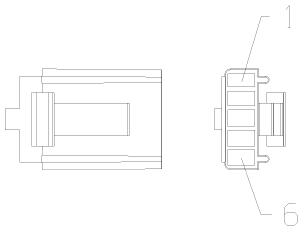

Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13143-600

Gray

23-13214-000

(16-18 GA) Female (Tin)


23-13214-001

(14 GA) Female (Tin)

23-13302-052 N/A

23-13143-600

Connector Cavities

Fem MICP100
CBL.OD.MM:0-2.4

1, 2, 3, 4, 5, 6


TYP TERM

23-13214-000

23-13214-001


23-13214-000


23-13214-001


23-13302-052

(Terminal Lock)
