Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

Can Mate To

23-13142-804



Terminal Lock:

23-13302-086

Gray

23-13213-030

(16-20 GA) Male (Tin)

23-12497-006

(Dark Red)

23-12497-018

(White)

23-13218-000

23-13142-802

or

A06-25512-006


23-13142-804

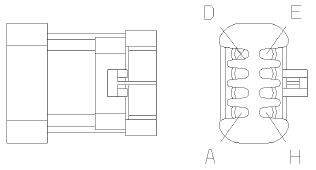

Connector Cavities

Male MP150S

20T, 20G, 20S,

18T, 18G, 18S,

16T, 16G



CBL.OD.MM:0-2.31

A, B, C, E, F, G, H


TYP TERM

23-13213-030

Male BLKD

D


23-13213-030

(16-20 GA) Male (Tin)


23-12497-006

(Terminal Seal)
(Dark Red)


23-12497-018

(Terminal Seal)
(White)


23-13302-086

Terminal Lock


23-13218-000

(Cavity Seal - Dark Red)
