Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.

------ ------ ------ ------ ------ ------

For Instructions On How To Find A Mating Connector, Click <HERE>.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

Can Mate To

23-13142-215



Terminal Lock:

23-13302-087

Black





23-13213-120

(16-20 GA) Female (Tin)










23-13213-121

(12-14 GA) Female (Tin)








23-13213-122

(10-12 GA) Female (Tin)



23-12497-000

(Light Gray)

23-12497-002

(Green)

23-12497-019

(Purple)


23-12497-000

(Light Gray)

23-12497-001

(Blue)

23-12497-002

(Green)




23-12497-001

(Blue)



23-13218-001

23-13142-227



or



23-13142-226



or



A06-25512-003

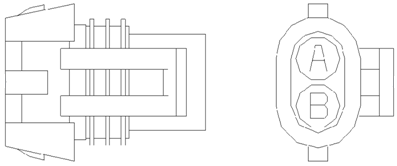

23-13142-215 Connector Cavities

Fem MP280S

A, B


TYP TERM

23-13213-120

23-13213-121

23-13213-122





23-12497-000

(Terminal Seal)

(Light Gray)


23-12497-001

(Terminal Seal)

(Blue)


23-12497-002

(Terminal Seal)

(Green)


23-12497-019

(Terminal Seal)

(Purple)


23-13302-087

(Terminal Lock)


23-13218-001

(Cavity Seal - Green)
