Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

Can Mate To

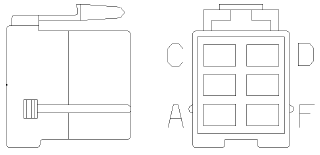

23-13141-605



* Connector Lock:

23-13302-401



Terminal Lock:

23-13302-035



* = Optional

Black

23-13213-100

(18-20 GA) Female (Tin)


23-13213-101

(10-16 GA DBL) Female (Tin)


23-13213-102

(12-14 GA) Female (Tin)


23-13213-103

(10-12 GA) Female (Tin)


23-13213-104

(20-22 GA) Female (Tin)


23-13213-114

(12-14 GA) Female (Tin)

N/A

23-13141-604

23-13141-605

Connector Cavities



Fem MP280

A, B, E, F


23-13213-100

23-13213-101

23-13213-102

23-13213-103

23-13213-104

23-13213-114

Fem MP280

(Large Cavity)

C, D


23-13213-100

23-13213-101

23-13213-102

23-13213-103

23-13213-104

23-13213-114


23-13213-100

(16-20 GA) Female (Tin)


23-13213-101

(10-16 GA DBL) Female (Tin)


23-13213-102

(12-14 GA) Female (Tin)


23-13213-103

(10-12 GA) Female (Tin)


23-13213-104

(20-22 GA) Female (Tin)


23-13213-114

(12-14 GA) Female (Tin)


23-13302-401

(Connector Lock)


23-13302-035

(Terminal Lock)
