Connector Part Number

Connector Type

A06-35576-001

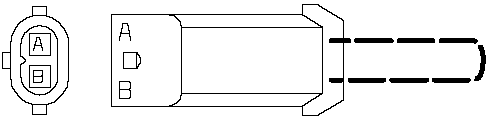

Jumper Assembly, Cluster Switch


A06-35576-001

Kit Contains The Following:

48-25428-181: 0.5' Long (Quantity 1)

23-13142-220: Connector (Quantity 1)
23-13213-130: Male Terminal (Quantity 2)
23-12497-002: Cable seal (Quantity 2)
23-13302-030: Terminal Lock (Quantity 1)


48-25428-181

Wire - General purpose, cross linked polyolefin (GXL)

18 Gauge


Important

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Terminal Lock

Plug Part Number

23-13142-220

Black





23-13213-130

(16-20 GA) Male (Tin)










23-13213-131

(12-14 GA) Male (Tin)





23-12497-000

(Light Gray)

23-12497-002

(Green)

23-12497-019

(Purple)


23-12497-000

(Light Gray)

23-12497-001

(Blue)

23-12497-002

(Green)

23-13302-030

23-13218-001


23-13142-220

Connector Cavities

Male MP280S

A, B


TYP TERM

23-13213-130

23-13213-131




23-12497-000

(Terminal Seal)
(Light Gray)


23-12497-001

(Terminal Seal)
(Blue)


23-12497-002

(Terminal Seal)
(Green)


23-12497-019

(Terminal Seal)
(Purple)


23-13302-030

(Terminal Lock)


23-13218-001

(Cavity Seal - Green)



23-12497-002

(Terminal Seal)
(Green)


23-13302-030

(Terminal Lock)
