Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

23-13305-305

Connector Cover: 23-13432-320

Black



23-13213-500

(16-18 GA) Female (Gold-Nickel)


23-13213-501

(12-14 GA) Female (Gold-Nickel)


23-13213-502

(10 GA) Female (Gold-Nickel)


23-13213-503

(8 GA) Female (Gold-Nickel)


23-13213-504

(14 GA) Female (Gold)


23-13213-505

(10 GA) Female (Gold)




23-13213-506

(8 GA) Female (Gold)





N/A






N/A




N/A




N/A




N/A




N/A




23-13217-901

(Gray)



N/A


23-13305-305

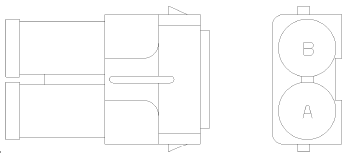

Connector Cavities

Fem MP800 MUST USE

W/SEAL 23-13217-900

OR 23-13217-901
CBL.OD.MM:2-8

B


TYP TERM

23-13213-500

23-13213-501

23-13213-502

23-13213-503

23-13213-504

23-13213-505

23-13213-506

23-13213-540

Fem MP800 MUST USE
W/ SEAL 23-13217-900
OR 23-13217-901
CBL.OD.MM:2-8

A


TYP TERM

23-13213-500

23-13213-501

23-13213-502

23-13213-503

23-13213-504

23-13213-505

23-13213-506

23-13213-540


23-13213-500


23-13213-501


23-13213-502


23-13213-503






23-13432-320

(Connector Cover)


23-13217-901

(Terminal Seal - Gray)
