Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Terminal Lock

Plug Part Number

23-13153-070



(Back Shell: 23-13154-626)

Black

23-13211-581

(18-20 GA) Female (Tin)


23-13211-582

(18-20 GA) Female (Gold)




23-13211-240

(20 GA) Female (Tin)






23-13211-241

(16-18 GA) Female (Tin)






23-13211-242

(14 GA) Female (Tin)



N/A




N/A


23-13217-010

(Green)

23-13217-011

(Red)


23-13217-011

(Red)

23-13217-012

(White)


23-13217-012

(White)



N/A

23-13218-620


23-13153-070

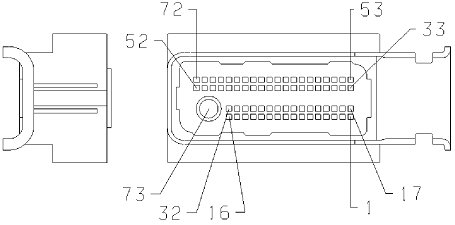

Connector Cavities

Female MX64

CBL.OD.MM:

1.47-2.06

1, 2, 3, 4, 5, 6, 7, 8, 9, 10,

11, 12, 13, 14, 15, 16, 17,

18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 31,

32, 33, 34, 35, 36, 37, 38,

39, 40, 41, 42, 43, 44, 45,

46, 47, 48, 49, 50, 51, 52,

53, 54, 55, 56, 57, 58, 59,

60, 61, 62, 63, 64, 65, 66,

67, 68, 69, 70, 71, 72


TYP TERM

23-13211-581

23-13211-582

Female Y2.8S

CBL.OD.MM:

1.47-2.66

73


TYP TERM

23-13211-240

23-13211-241

23-13211-242


23-13211-581



23-13211-581



23-13154-626

(Back Shell)


23-13218-620

(Cavity Seal - Gray)
