Important

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.


Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13153-034

Black

23-13211-400

(18-20 GA) Female (Tin)


23-13211-401

(14-16 GA) Female (Tin)


23-13211-420

(18-20 GA) Female (Tin)


23-13211-421

(14-16 GA) Female (Tin)


23-13211-422

(10-12 GA) Female (Tin)


23-13211-520

(18-20 GA) Female (Gold)

23-13154-005

23-13218-900

(Small Cavity

M1.6)

(Color: Natural)


23-13218-901

(Large Cavity

M2.8)

(Color: Red)


23-13153-034

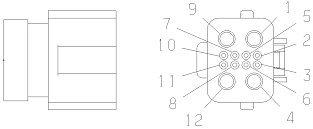

Connector Cavities

Fem M1.6

CBL.OD.MM: 1.7-2.7

2, 3, 5, 6, 7, 8, 10, 11


23-13211-400

23-13211-401

23-13211-520

Fem M2.8

CBL.OD.MM: 1.9-3.3

1, 4, 9, 12


23-13211-420

23-13211-421

23-13211-422


23-13211-400



23-13211-401



23-13211-520



23-13211-420



23-13211-421



23-13211-422



23-13218-900

(Cavity Seal - Natural)


23-13218-901

(Cavity Seal - Red)
