Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13149-906



23-13218-100 - Cavity Plug

Gray

23-13209-000

(16-20 GA) Female (Tin)


23-13209-001

(14-16 GA) Female (Tin)


23-13209-002

(12-14 GA) Female (Tin)


23-13209-020

(16-20 GA) Female (Gold)


23-13209-021

(14-16 GA) Female (Gold)


23-13209-022

(16-20 GA) Female (Silver)


23-13209-023

(14-16 GA) Female (Silver)

N/A

23-13149-906

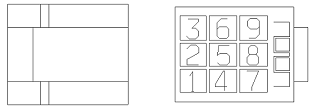

Connector Cavities

Fem JPT

22T, 20T, 20G, 20S, 18T,

18G, 16T, 16G, 14T



CBL.OD.MM:0-2.66

1, 2, 3, 4, 5, 6, 7, 8, 9


TYP TERM

23-13209-000

23-13209-001

23-13209-002

23-13209-020

23-13209-021

23-13209-022

23-13209-023




23-13218-100
