Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

23-13149-610



Addons:

*Back Shell: 23-13304-612

*Back Shell: 23-13304-613

*Back Shell: 23-13304-614

*Back Shell: 23-13304-619



*=Optional

Black



23-13209-700

(18-20 GA) Female (Silver)






23-13209-701

(16 GA) Female (Silver)






23-13209-702

(18-20 GA) Female (Gold)






23-13209-720

(18-20 GA) Female (Tin)




23-13209-721

(16 GA) Female (Tin)

23-13216-070

(Yellow)

23-13216-071

(Grey)




23-13216-070

(Yellow)




23-13216-070

(Yellow)

23-13216-071

(Grey)


23-13216-070

(Yellow)

23-13216-071

(Grey)


23-13216-070

(Yellow)

23-13218-150


23-13149-610

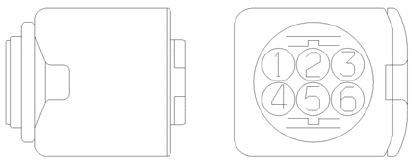

Connector Cavities

Fem MCP1.5KS 20 TXL,
18TXL, 16TXL
CBL.OD.MM:1.64-2.25

1, 2, 3, 4, 5, 6


TYP TERM

23-13209-700

23-13209-701

23-13209-702

23-13209-720

23-13209-721




23-13209-700


23-13209-701


23-13209-702


23-13209-720


23-13209-721


23-13218-150

(Cavity Seal - White)


23-13304-612

(Back Shell)


23-13304-613

(Back Shell)


23-13304-614

(Back Shell)


23-13304-619

(Back Shell)
