Connector Part Number

Color

Terminal Part Numbers

Terminal Seal

Plug Part Number

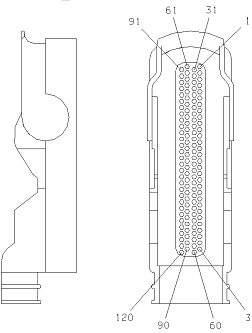

23-13149-030

Back Shell P/N: 23-13304-611

Black



23-13209-700

(18-20 GA) Female (Silver)




23-13209-701

(16 GA) Female (Silver)

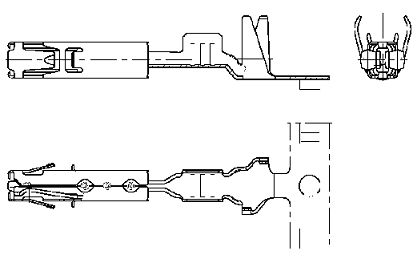

23-13209-720

(18-20 GA) Female (Tin)




23-13209-721

(16 GA) Female (Tin)

23-13216-070

(Yellow)

23-13216-071

(Gray)


23-13216-070

(Yellow)


23-13216-070

(Yellow)

23-13216-071

(Gray)


23-13216-070

(Yellow)

23-13218-150


23-13149-030

Connector Cavities

Fem MCP1.5KS

CBL.OD.MM:1.4-2.4

1, 2, 3, 4, 5, 6, 7, 8, 9,

 10, 11, 12, 13, 14, 15,

16, 17, 18, 19, 20, 21,

22, 23, 24, 25, 26, 27,

28, 29, 30, 31, 32, 33,

34, 35, 36, 37, 38, 39,

40, 41, 42, 43, 44, 45,

46, 47, 48, 49, 50, 51,

52, 53, 54, 55, 56, 57,

58, 59, 60, 61, 62, 63,

64, 65, 66, 67, 68, 69,

70, 71, 72, 73, 74, 75,

76, 77, 78, 79, 80, 81,

82, 83, 84, 85, 86, 87,

88, 89, 90, 91, 92, 93,

94, 95, 96, 97, 98, 99,

100, 101, 102, 103,

104, 105, 106, 107,

108, 109, 110, 111,

112, 113, 114, 115,

116, 117, 118, 119,

120


23-13209-700

23-13209-701

23-13209-720

23-13209-721


23-13304-611

(Back Shell)


23-13209-700


23-13209-701


23-13209-702


23-13209-720


23-13209-721


23-13216-070

(Seal) (Yellow)


23-13216-071

(Seal) (Gray)


23-13218-150
