Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13148-086

Gray

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)


23-13210-139

(14-16 GA) Female (Nickel)

23-13303-031

23-13218-201


23-13148-086

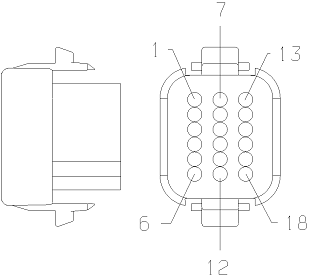

Connector Cavities
Fem S16 18GXL,
18SXL, 16GXL, 16SXL
14TXL, 14GXL, 14SXL
CBL.OD.MM:2.23-3.68

1, 2, 3, 4, 5, 6, 7, 8,

9, 10, 11, 12, 13, 14,

15, 16, 17, 18


TYP TERM

23-13210-100

23-13210-101

23-13210-108

23-13210-120

23-13210-121

23-13210-122

23-13210-139


23-13210-100


23-13210-101


23-13210-120


23-13210-121


23-13210-122


23-13210-139


23-13303-031

Terminal Lock


23-13218-201
