Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13148-082



* Back Shell: 23-13303-603 (Straight)

* Back Shell: 23-13303-617 (90 Degrees)

* Connector Cover: 23-13303-803

* Connector Cover: 23-13303-807

* Connector Seal: 23-13303-702

*Washer: 23-13303-501)

*Nut: 23-13303-502)





* = Optional

Black

23-13210-010

(16-20 GA) Male (Nickle)


23-13210-030

(16-20 GA) Male (Gold)


23-13210-110

(16-18 GA) Male (Nickle)


23-13210-111

(14-16 GA) Male (Nickle)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)


23-13210-210

(12-14 GA) Male (Nickle)


23-13210-230

(12-14 GA) Male (Gold)

23-13218-200



23-13218-201


23-13148-082

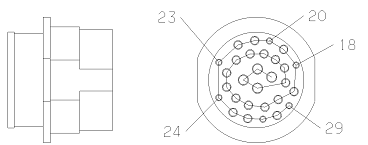

Connector Cavities

Male S16

18TXL, 18GXL,

16TXL

CBL.OD.MM:1.35-2.62

5, 6, 7, 8, 9, 10, 11, 12,

13, 14, 15, 16, 17, 19,

21, 22, 25, 26, 28


TYP TERM

23-13210-110

23-13210-111

23-13210-130

23-13210-131

23-13210-132

Male S12

14GXL, 14SXL,

12TXL, 12GXL, 10TXL

CBL.OD.MM:2.46-4.01

1, 2, 3, 4


TYP TERM

23-13210-210

23-13210-230

Male S20

18TXL

CBL.OD.MM: 1.02-2.11

18, 20, 23, 24, 27, 29


TYP TERM

23-13210-010

23-13210-030






23-13303-603

(Back Shell)


23-13303-617

(Back Shell)


23-13303-803

(Connector Cover)


23-13303-807

(Connector Cover)


23-13303-702

(Connector Seal)


23-13303-501

(Washer)


23-13303-502

(Panel Nut)


23-13210-110


23-13210-111


23-13210-130


23-13210-131


23-13210-132


23-13210-210


23-13210-230

23-13218-201
