Important

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.


Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13148-056

Green

23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(14-16 GA) Male (Gold) (XLONG)

23-13303-000

23-13218-201


23-13148-056

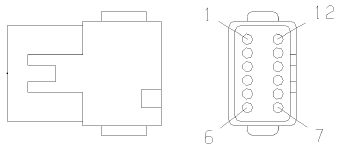

Connector Cavities

Male S16 18GXL,
18SXL, 16GXL, 16SXL
14TXL, 14GXL, 14SXL
CBL.OD.MM:2.23-3.68

1, 2, 3, 4, 5, 6, 7,

 8, 9, 10, 11, 12


TYP TERM

23-13210-110

23-13210-111

23-13210-130

23-13210-131

23-13210-132


23-13210-110


23-13210-111



23-13210-130


23-13210-131


23-13210-132


23-13303-000


23-13218-201

(Cavity Seal - White)
