Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13148-052

* Back Shell: 23-13303-608 (90 Degrees)

* Back Shell: 23-13303-613 (Straight)



* = Optional

Black

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)

23-13218-201


23-13148-052

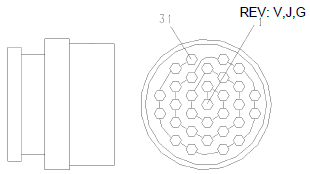

Connector Cavities

Fem S16 18TXL,
18GXL, 16TXL, 16GXL,
14TXL
CBL.OD.MM:1.35-2.69

1, 2, 3, 4, 5, 6, 7, 8, 9, 10,

11, 12,13, 14, 15,16, 17,

18,19, 20, 21, 22, 23, 24,

25, 26, 27,28, 29,30, 31


TYP TERM

23-13210-100

23-13210-101

23-13210-120

23-13210-121

23-13210-122


23-13303-608

(Back Shell)


23-13303-613

(Back Shell)


23-13303-802

(Connector Cover)







23-13218-201
