Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13148-031

* Back Shell:23-13303-608 (90 Degrees)

* Back Shell:23-13303-613 (Straight)



* Optional

Black

23-13210-000

(16-20 GA) Female (Nickle)


23-13210-020

(16-20 GA) Female (Gold)


23-13210-100

(16-18 GA) Female (Nickle)


23-13210-101

(14-16 GA) Female (Nickle)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold) (XLONG)



23-13218-200


23-13218-201


23-13148-031

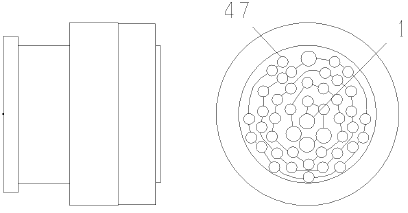

Connector Cavities

Fem S20 20TXL, 18TXL
CBL.OD.MM:1.02-2.11

2, 3, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 31, 32, 33,

 35, 36, 37, 38, 39, 40, 41, 42, 43,
44, 45, 46, 47


TYP TERM

23-13210-000

23-13210-020

Fem S16 18TXL,
18GXL, 16TXL, 16GXL, 14TXL
CBL.OD.MM:1.35-2.62

1, 4, 5, 6, 34






TYP TERM

23-13210-100

23-13210-101

23-13210-120

23-13210-121

23-13210-122





23-13210-101


23-13210-120


23-13210-121


23-13210-122


23-13303-608

(Back Shell)


23-13303-613

(Back Shell)


23-13218-200


23-13218-201
