Important

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.


Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Plug Part Number

23-13144-301

Black

23-13212-130

(16-18 GA) Female (Tin)






23-13212-131

(12-14 GA) Female (Tin)

23-12497-281

(Yellow)

23-12497-282

(Tan)


23-12497-282

(Tan)

23-12497-283

(Purple)

23-13218-011


23-13144-301

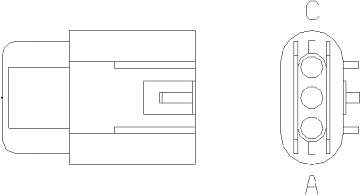

Connector Cavities

Male GT280S

A, B, C


23-13212-130

23-13212-131




23-12497-281

(Terminal Seal)
(Yellow)


23-12497-282

(Terminal Seal)
(Tan)


23-12497-283

(Terminal Seal)
(Purple)


23-13218-011

(Cavity Seal - White)
