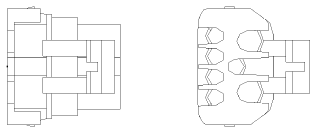

Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Terminal Lock

Plug Part Number

23-13142-701

* Connector Lock

23-13302-400



* = (Optional)

Black

23-13213-020

(16-20 GA) Female (Tin)




23-13213-090

(16-18 GA) Female (Gold)






23-13213-320

(18-20 GA) Female (Tin)




23-13213-321

(14-16 GA) Female (Tin)




23-13213-322

(10-12 GA) Female (Tin)



23-12497-006

(Dark Red)

23-12497-018

(White)


23-12497-006

(Dark Red)

23-12497-018

(White)


23-12497-008

(White)

23-12497-015

(Yellow)


23-12497-008

(White)

23-12497-009

(Red)


23-12497-009

(Red)

23-12497-010

(Purple)

23-12497-025

(Orange)

23-13302-024 23-13218-000






23-13218-002

23-13142-701

Connector Cavities

Fem MP150S

20TXL,20GXL,20SXL,18TXL,

18GXL,18SXL,16TXL,16GXL

CBL.OD.MM:1.6-2.7

A, B, C, D, F


TYP TERM

23-13213-020

23-13213-090



Fem MP480S

18AWG, 16AWG, 14AWG,

12AWG, 10AWG

CBL.OD.MM:1.9-5

E, G


23-13213-320

23-13213-321

23-13213-322




23-13213-020


23-13213-090


23-13213-320


23-13213-321


23-13213-322


23-12497-006

(Terminal Seal)
(Dark Red)


23-12497-009

(Terminal Seal)
(Red)


23-12497-010

(Terminal Seal)
(Purple)


23-12497-015

(Terminal Seal)
(Yellow)


23-12497-018

(Terminal Seal)
(White)


23-12497-025

(Terminal Seal)
(Orange)


23-13302-400

(Connector Lock)


23-13302-024

(Terminal Lock)


23-13218-000


23-13218-002
