Connector Part Number

Color

Terminal Part Numbers

Seal Part Numbers

Terminal Lock

Connector Lock

Plug Part Number

23-13142-232

Gray



23-13213-320

(18-20 GA) Female (Tin)






23-13213-321

(14-16 GA) Female (Tin)






23-13213-322

(10-12 GA) Female (Tin)





23-12497-008

(White)

23-12497-015

(Yellow)


23-12497-008

(White)

23-12497-009

(Red)


23-12497-009

(Red)

23-12497-010

(Purple)

23-12497-025

(Orange)

23-13302-033

23-13302-400

(Optional)

23-13218-002

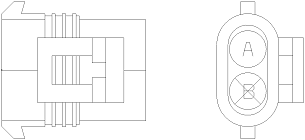

23-13142-232 Connector Cavities

Fem MP480S

CBL.OD.MM:0-4.6

A


23-13213-320

23-13213-321

23-13213-322

Fem BLKD

B



23-13213-320


23-13213-321


23-13213-322



23-12497-008

(Terminal Seal)
(White)


23-12497-009

(Terminal Seal)
(Red)


23-12497-010

(Terminal Seal)
(Purple)


23-12497-015

(Terminal Seal)
(Yellow)


23-12497-025

(Terminal Seal)
(Orange)


23-13302-033

(Terminal Lock)


23-13302-400

(Connector Lock)


23-13218-002
